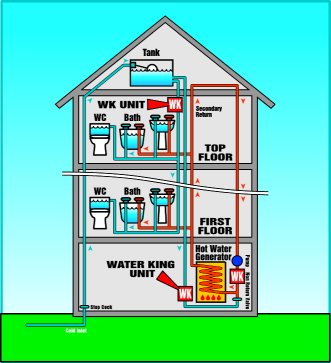

Water King Vented System Diagram

High Level Cold Cistern With Low Level Plant Room


Treat the CWDS close to the water heater with a second unit on the HWSR after the circulation pump. One of the CWS drops from the header is treated with a third unit.
